2015 GKG GL PLUS AUTOMATIC STENCIL PRINTER

/in , /by /Last Updated:

Manufacturer: GKG
Model # GL PLUS
DOM:  2015
Reference No.: 523L

Information:

SMT Sales Group is offering a GKG GL Plus fully automatic SMT stencil printer, designed for high-accuracy solder paste printing in demanding SMT manufacturing environments.

The GKG GL Plus platform is widely used in EMS and OEM production facilities for its print accuracy, process stability, and user-friendly operation.

Machine Details

Manufacturer: GKG
Model: GL Plus
Machine Type: Fully Automatic SMT Stencil Printer
Application: High-precision solder paste printing for SMT PCB assembly

Key Features

  • Fully automatic SMT stencil printing platform
  • High-precision servo-driven print system
  • Vision alignment and fiducial recognition
  • Stable and repeatable solder paste deposition
  • User-friendly Windows-based operating interface
  • Programmable print pressure and speed control
  • Automatic board clamping and support system
  • Designed for high-volume and high-mix SMT manufacturing

Printing Capability

  • Fine-pitch SMT solder paste printing
  • Suitable for complex PCB assemblies
  • Excellent repeatability and print consistency
  • Supports a wide range of PCB sizes and stencil configurations

Description

The GKG GL Plus is a proven SMT stencil printer platform engineered for accuracy, repeatability, and production efficiency. Built for modern SMT assembly environments, the machine provides stable solder paste printing performance for a broad range of electronics manufacturing applications.

  • Please contact SMT Sales Group for additional information or to make an offer

Click the images below for additional views.

Contact SMT Sales Group using the form below or email lcoole@mac.com for additional information or inquiries.

FAST response, within an hour or less.

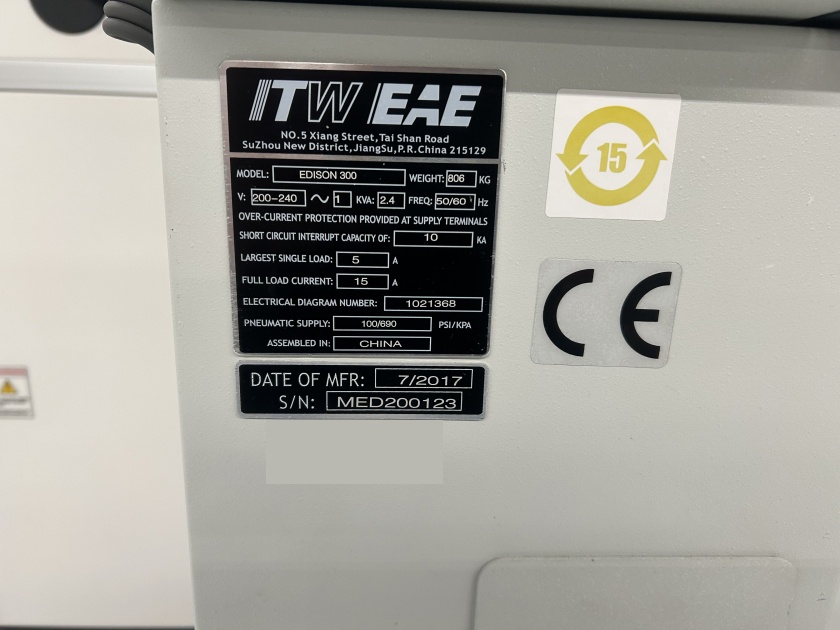

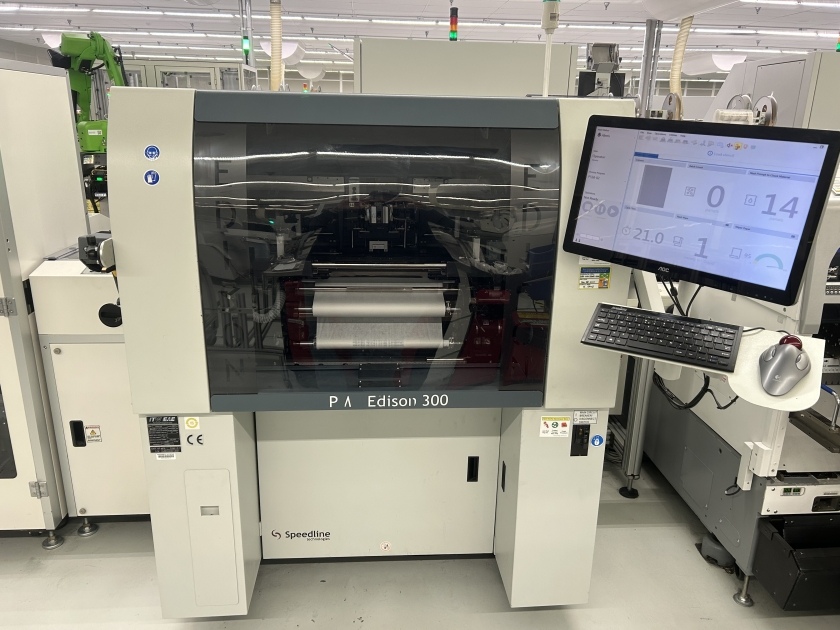

    2017 MPM EDISON 300 Screen Printer

    /in /by /Last Updated:

    Make: MPM EDISON 300
    Model: EDISON 300
    DOM: 2017
    Reference No.: 485L

    Information:

    • 2017 MPM EDISON 300 Screen Printer
    • Please contact SMT Sales Group for additional information or to make an offer

    Click the images below for additional views.

    Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

    FAST response, within an hour or less.

      NOTE: The unit being offered for sale MAY or MAY NOT have one or all of the features or options as described here. Please contact SMT SALES GROUP for more information about the listed tool.

      The Edison printer is the industries’ most accurate printer (certified by third party) with +/- 15μ @ 6σ wet print repeatability. Total throughput is lightning fast due in part to the highly-efficient, parallel processing of the stencil shuttle system, stencil wiping, paste dispensing and vision alignment system. The MPM Edison™ stencil printer is ideally suited for the growing Automotive, Semiconductor and Smart Device manufacturing markets.

      Faster Throughput for a Better Process

      Edison’s parallel processing system is extremely fast resulting in a very short cycle time. This helps increase throughput by shortening total time per PCB printed. This leaves more time for key overhead functions that have the biggest impact on print quality:

      • Print at slower speeds to decrease variability
      • Utilize slow stencil separation for optimal print definition
      • Double stroke after wipe
      • More frequent wiping resulting in higher yields
      • Time leftover to optimize settings for maximum possible yields
      Incomparable Wet Print Accuracy

      Best-in-class printing with a 25% improvement in wet print accuracy over current printers: Built-in +/- 8 micron alignment, and +/- 15 micron wet print repeatability (≥2 Cpk @ 6σ) proven through 3rd party Print Capability Analysis (PCA) testing.

      Back To Back (BTB) Configurable

      BTB is a flexible dual lane solution without adding line length; identical single-lane printers are easily re-deployed to other lines when needed. Use in BTB configuration, or singly as a stand-alone.

      Intueri Graphical User Interface

      MPM Intueri is a simple, intuitive operator interface with a flexible, wide array of configuration variables. It is combined with OpenApps for maximum capability and connectivity and provides a portal to Industry 4.0 concepts.

      Advanced Print Head

      Single axis closed-loop pressure control for dual squeegee eliminates front-to-back variation; a single high precision load cell provides squeegee force, and a unique algorithm calibrates out non-linearity, maintaining the set pressure across the entire board surface.

      Board Staging

      Ability to have three boards in the machine simultaneously, reduced distance on input conveyor by pre-loading the board during the print process results in reduced transfer times and improved cycle time.

      EdgeLoc Board Clamping System

      The EdgeLoc system uses a side snugging technique that removes the need for top clamps which interfere with the PCB to stencil contact. The result is optimal gasketing and more volumetrically consistent edge-to-edge prints. With EdgeLoc II, robust flippers engage to secure the board across the top edge ensuring board flatness then move out of the way once the board is firmly gripped from the side. EdgeLoc+ board clamping can change between edge and top clamping simply through software.

      High Speed Vision Alignment with Ultra-slim Camera

      Edison features a high-speed vision alignment system with an ultra-thin camera. The overall gantry thickness is only 39 mm featuring an ‘on the fly’ ‘POE’ (Power Over Ethernet) camera. A single CCD split field provides precision simultaneous up-down image acquisition with a field of view 9.0 x 6.0 mm.

      Intueri and Industry 4.0 Integration

      MPM Intueri is a simple, intuitive operator interface with a flexible, wide array of configuration variables. It is combined with Open Apps for maximum capability and connectivity and provides a portal to Industry 4.0 concepts.

      OpenApps™ is an open application interface with a development kit that allows customers to develop custom interfaces in support of Industry 4.0 initiatives. Using OpenApps we can provide support for factory automation standards such as Hermes and Pulse and communication with Manufacturing Execution Systems (MES). MPM printers support industry standards like CamX, SECS/GEM and SMEMA.

      The Edison SECS/GEM package provides a ready-made interface that enables MES integration for product verification, traceability, and other MES functionalities. SECS/GEM is a semiconductor industry communication standard that provides a common interface for MES connectivity.

      Paste Height Monitor

      The Paste Height Monitor is designed to prevent defects caused y inadequate volumes of paste on the stencil. It combines advanced software and sensor technology to accurately monitor the paste bead for volume consistency. Upper and lower limit roll-height monitoring eliminates insufficient or excess paste volumes. It is a non-contact solution that can automatically add more paste to the stencil as it is needed.

      PrinTrack

      The PrinTrack feature adds traceability, data harvesting, and reporting to your printing process. With PrinTrack, you always have an easy access to a comprehensive history, detailing:

      • How your product was printed
      • When it was printed
      • The process parameters used to print the board
      • All pertinent information that can be used to track products or troubleshoot the process if needed.

      A flexible web reporting interface can be user-configured to produce traceability reports.

      SPI Print Optimizer

      The SPI print optimizer communicates with the external Solder Paste Inspection (SPI) system to continuously monitor and auto-correct X, Y, and Theta registration ‘on the fly’ to stay on target and prevent print defects.

      Ultra-fast, High Efficiency Wiping System

      A super-size 65m paper roll allows 10,000 prints per change. Patented paper tension control provides more effective wiping and a separate wiping and printing zone prevents cross contamination.



      2019 HIT 520H Speedprint Inline Printer

      /in /by /Last Updated:

      Make: HIT
      Model: 520H
      DOM: 2019
      Reference No.: 479L

      Information:

      • 2019 HIT 520H Speedprint Inline Printer
      • Please contact SMT Sales Group for additional information or to make an offer

      Click the images below for additional views.

      Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

      FAST response, within an hour or less.

        2013 DEK Galaxy Screen Printer

        /in /by /Last Updated:

        Make: DEK
        Model: Galaxy
        DOM: 2013
        Reference No.: 478L

        Information:

        • 2013 DEK Galaxy Screen Printer
        • Please contact SMT Sales Group for additional information or to make an offer

        Click the images below for additional views.

        Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

        FAST response, within an hour or less.

          2017 Juki GKG GL Plus Screen Printer with Gridlock

          /in /by /Last Updated:

          Manufacturer: Juki
          Model #: GL Plus
          DOM: 2017
          Reference No.: 456L

          Information:

          • 2017 Juki GKG GL Plus Screen Printer with Gridlock
          • Please contact SMT Sales Group for additional information or to make an offer

          Click the images below for additional views.

          Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

          FAST response, within an hour or less.

            2010 DEK Horizon 03iX Inline Screen Printer

            /in /by /Last Updated:

            Manufacturer: DEK
            Model #: Horizon 03iX
            DOM: 2010
            Reference No.: 442L

            Information:

            • 2010 DEK Horizon 03iX Inline Screen Printer
            • Please contact SMT Sales Group for additional information or to make an offer

            Click the images below for additional views.

            Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

            FAST response, within an hour or less.

              2012 MPM Momentum Screen Printer

              /in /by /Last Updated:

              Manufacturer: MPM
              Model #: Momentum
              DOM: 2012
              Reference No.: 432L

              Information:

              • 2012 MPM Momentum Screen Printer
              • Please contact SMT Sales Group for additional information or to make an offer

              Click the images below for additional views.

              Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

              FAST response, within an hour or less.

                2017 MPM Momentum BTB Printer

                /in /by /Last Updated:

                Manufacturer: MPM
                Model #: Momentum BTB
                Reference No.: 412L

                Information:

                • 2017 MPM Momentum BTB Printer
                • Software version 4.6.5
                • Please contact SMT Sales Group for additional information or to make an offer

                Click the images below for additional views.

                Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

                FAST response, within an hour or less.

                  2016 MPM BTB Stencil Printer

                  /in /by /Last Updated:

                  Manufacturer: Universal Instruments
                  Model #: Radial Insertion Machine
                  Reference No.: 409L

                  Information:

                  • 2016 MPM BTB Stencil Printer
                  • Please contact SMT Sales Group for additional information or to make an offer

                  Click the images below for additional views.

                  Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

                  FAST response, within an hour or less.

                    2008 DEK Horizon 02i Stencil Printer

                    /in /by /Last Updated:

                    Manufacturer: DEK
                    Model #: Horizon 02i
                    DOM: 2008
                    Reference No.: 387L

                    Information:

                    • 2008 DEK 02i Screen Printer
                    • Please contact SMT Sales Group for additional information or to make an offer

                    Click the images below for additional views.

                    Contact SMT Sales Group using the form below or email sales@smtsalesgroup.com for additional information or inquiries.

                    FAST response, within an hour or less.
